High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems

  • High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems
  • High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems
  • High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems
  • High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems
Lugar de origem China,Suzhou
Marca SUPT MOTION
Certificação ISO9001
Número do modelo Série de VCAZ
Quantidade de ordem mínima 1 unidade
Preço $116
Detalhes da embalagem Embalagem personalizada etc.
Tempo de entrega 1-5 unidades, 5 dias. >20pcs, a ser negociado
Termos de pagamento T/T
Habilidade da fonte A ser negociado
Detalhes do produto
Tipo de motor Motores de Vibração Força de pico 10.2N
Specifications modelo VCZA0010-0020-00A Iniciando Atual 1.6A
Tensão nominal 14,8V Potência @Fp 56,3 W
AVC 1,5mm Peso do atuador 69g
Velocidade Alto Força contínua 2.2n
Tipo Micro motor Recurso de proteção Totalmente fechado
Deixe um recado
Descrição de produto

Product Description:

SUPTMOTION VCAZ Compact Vibration Voice Coil Actuator is a high-performance linear voice coil motor designed for precision automation systems requiring accurate motion control within limited installation space. Modern automation equipment used in industries such as semiconductor manufacturing, electronics assembly, optical alignment, and precision inspection often demands compact vibration motors capable of high speed and high precision.
This compact vibration voice coil motor delivers rapid dynamic response. Exceptional acceleration performance enables automation systems to achieve rapid start-stop motions and precise positioning adjustments, making it an ideal choice for applications demanding short cycle times and high production efficiency.
Featuring a compact structural design, the vibrating voice coil motor integrates seamlessly into micro-positioning platforms, robotic modules, and compact automation systems. Despite its small footprint, this actuator delivers high force density, providing robust thrust output for high-precision motion applications.

Features:

Type: Vibration Motor, Flexible Vibration Disc Voice Coil Motor, Vibration Voice Coil Motor

1.Compact voice coil actuator design

2.High precision positioning capability

3.Fast response and high acceleration

4.Smooth direct drive linear motion

5.Long service life and reliable performance

Product Parameters:

Stroke: 1.5 mm
Continuous Force: 2.2 N
Peak Force: 10.2 N
Repeatability: ±0.5 μm
Max Speed: 1.8 m/s
Frequency Response: 250 Hz



Model Number VCAZ0010-0020-00A
Coil parameters Tolerance Symbol Value Unit
DCR ±10% R 9.5 Ω
Peak Voltage standard value Vp 14.8 V
Maximum current standard value Ip 1.6 A
Force constant ±7.5% KF 2.7 N/A
Back EMF constant standard value KD 2.7 V/M/Sec
Inductance ±30% L 0.37 mH
Actuator paramters Symbol Value Unit
Peak force Fp 10.2 N
Continuous stall force Fc 2.2 N
Actuator coonstant Ka 0.87 N//W
Electrical time constant Te 0.04 milli-sec
Pmax Pp 24 W
Stroke S 1.5 mm
Clearance of each side of coil CL 0.8 mm
Thermal resistance Oth 20 ℃/W
Maximum coi temp allowed Tmax 150 ℃
Weight of coil WTc 13 g
Weight of magnet steel WTE 56 g
Weight of Actuator WTa 69 g

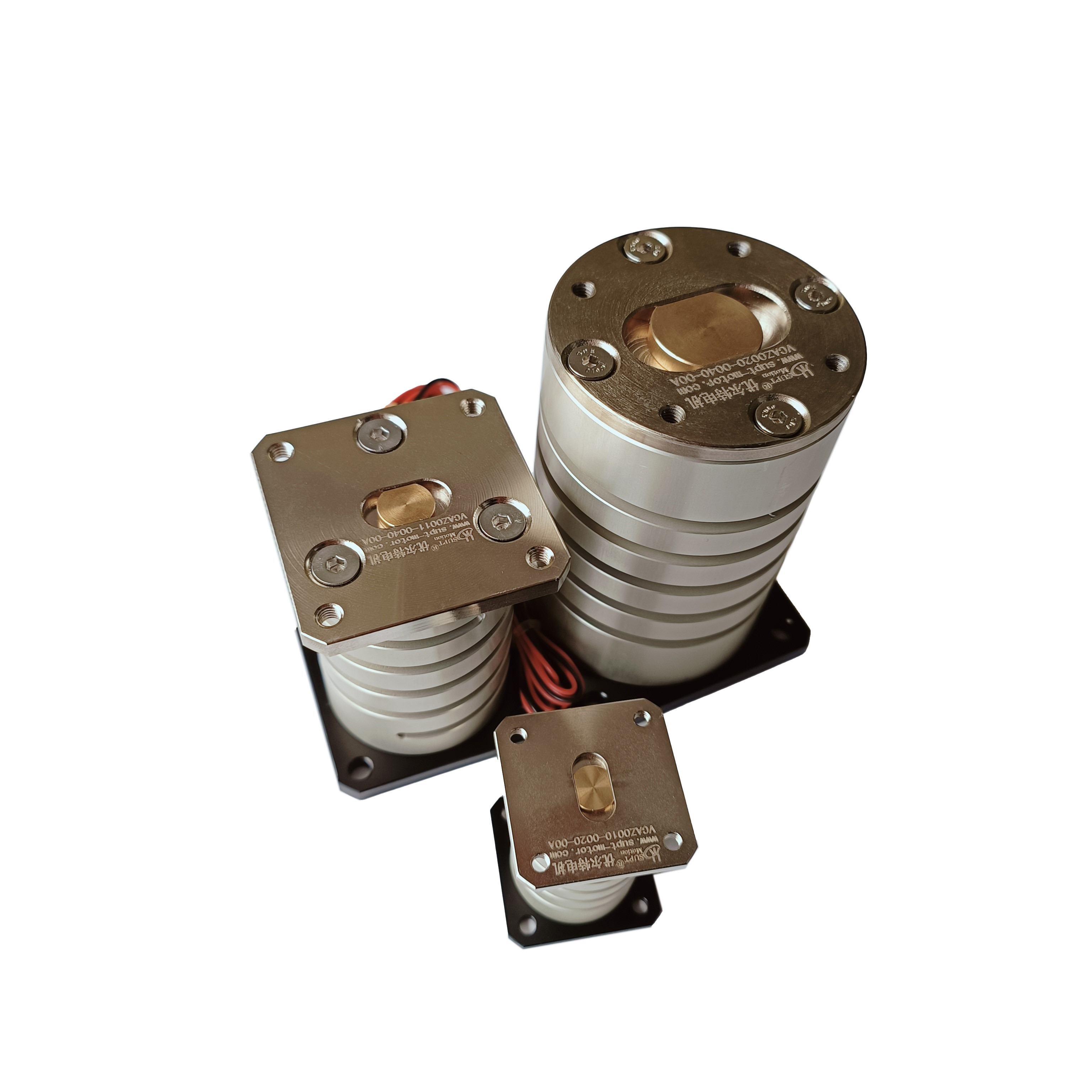

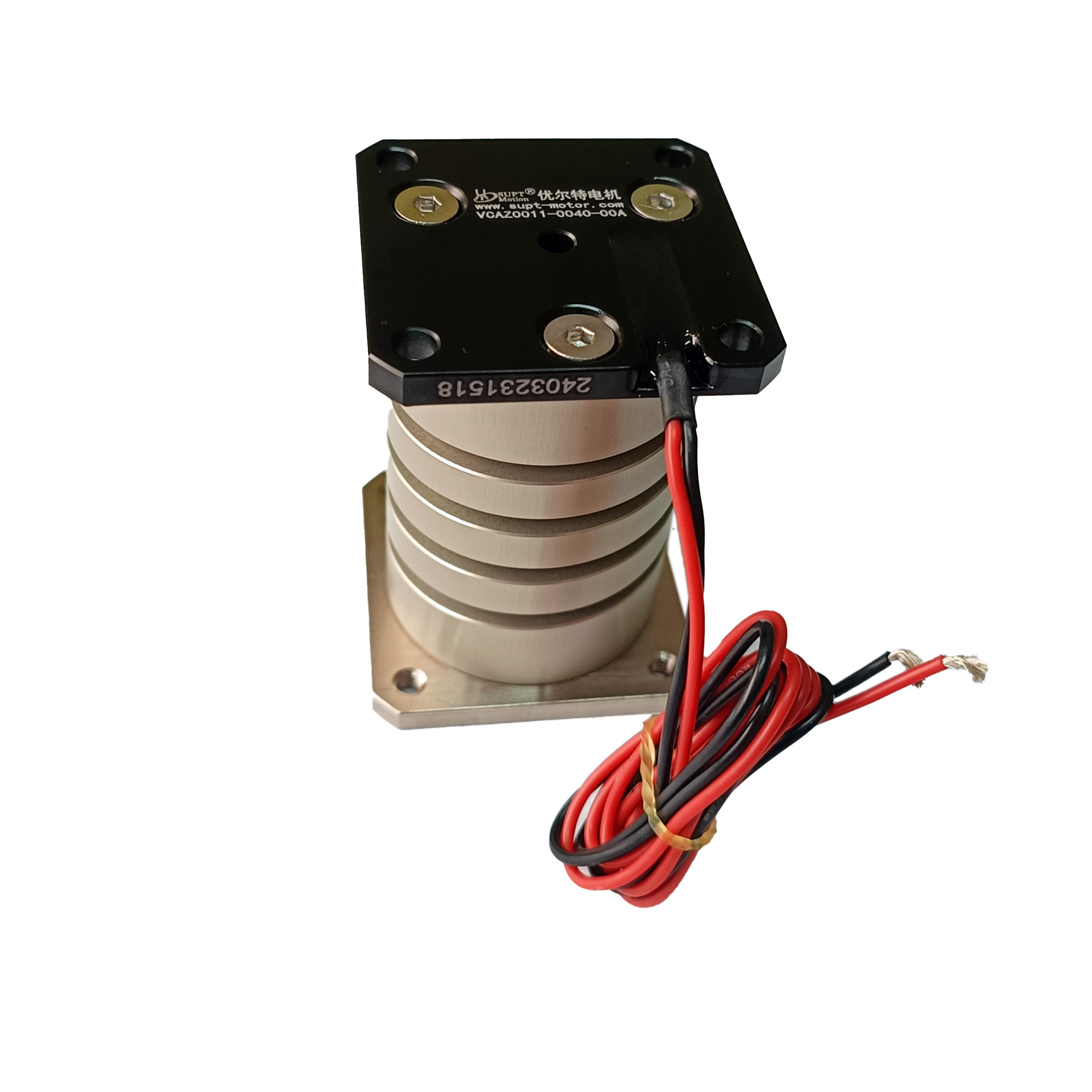

High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems 0

Applications:

1.Precision automation systems

2.Micro positioning stages

3.Electronics assembly equipment

4.Semiconductor inspection systems



The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry
injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

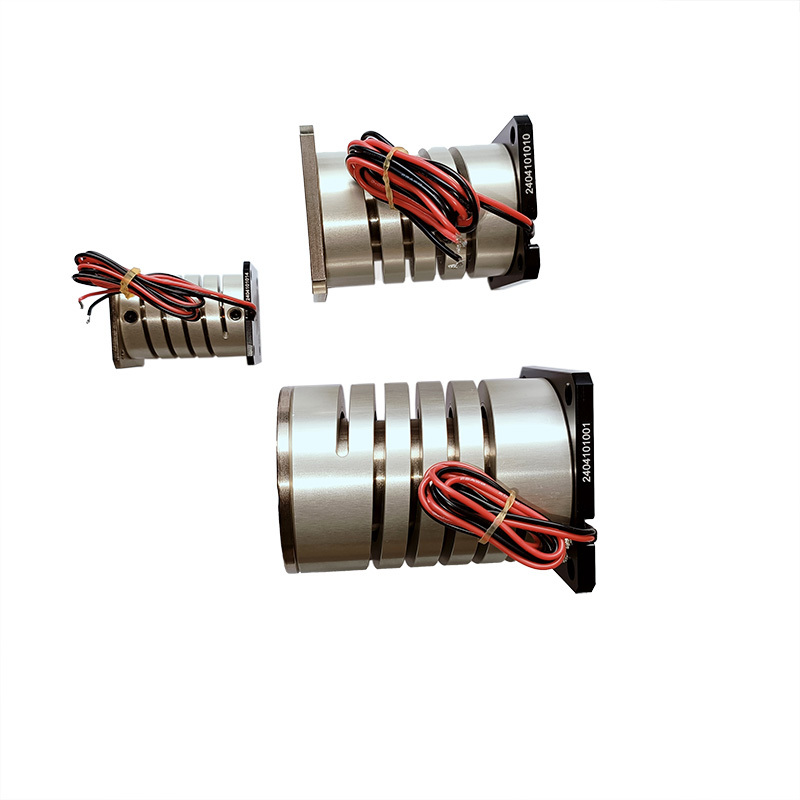

High Speed Compact Vibration Voice Coil Actuator For Precision Automation Systems 1
