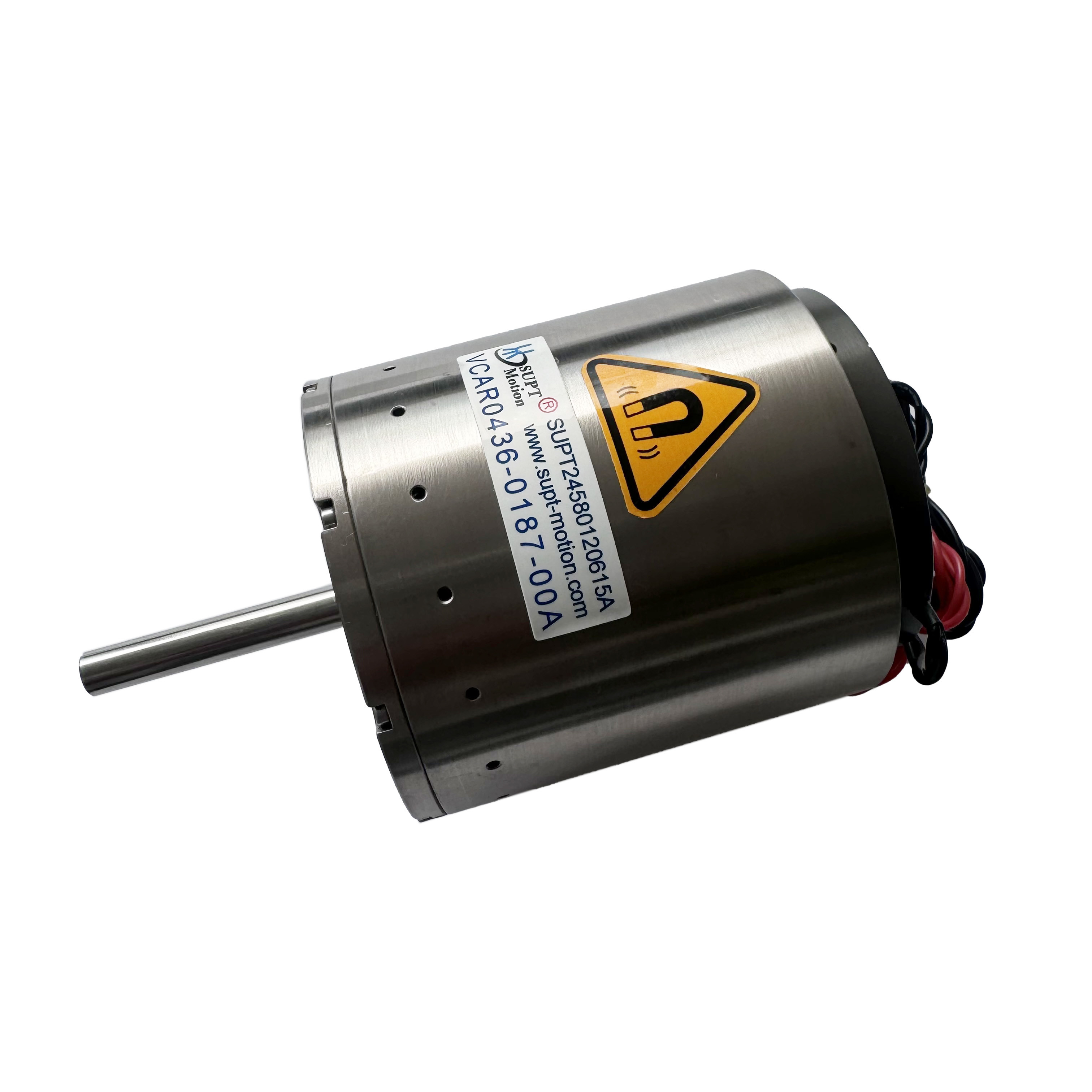

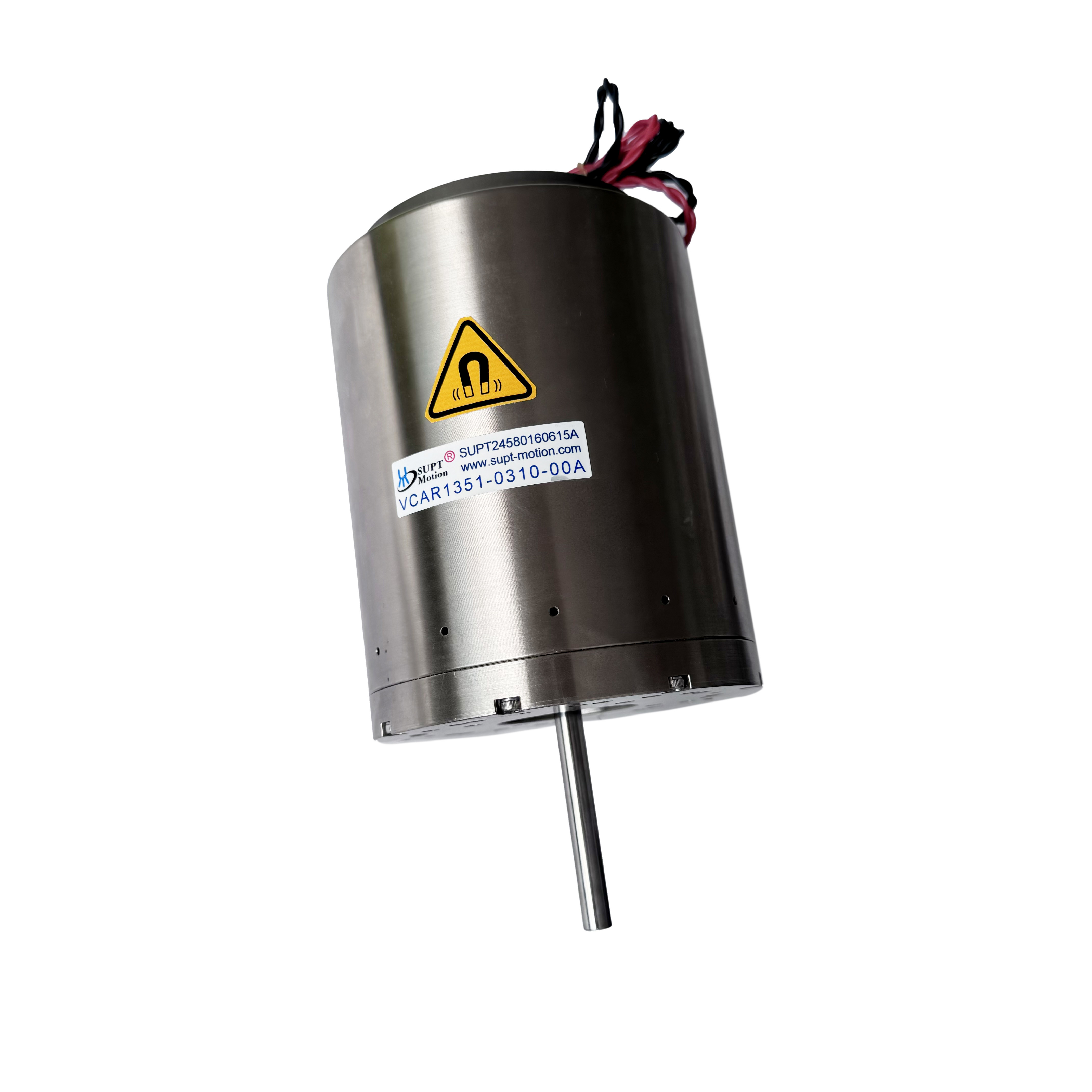

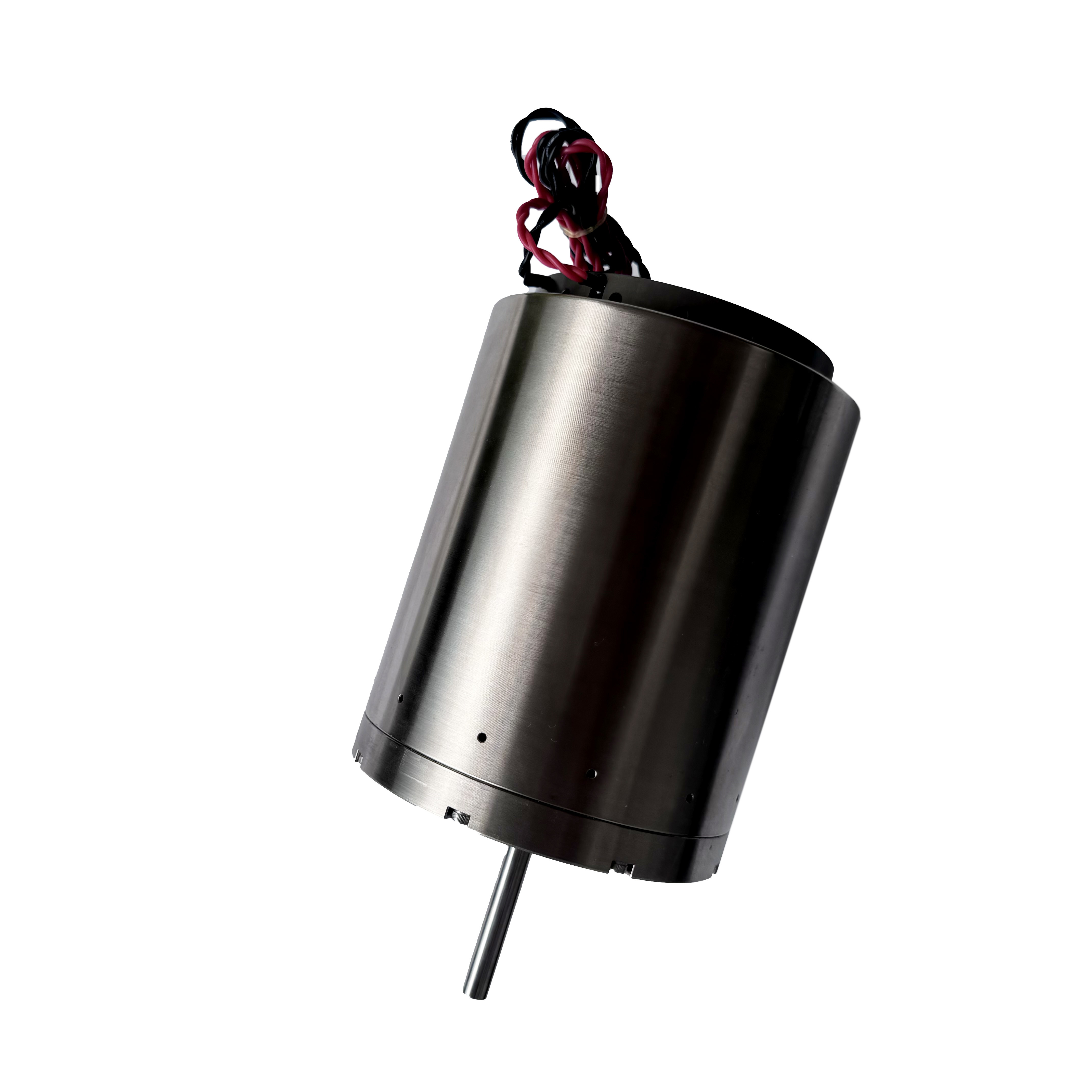

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners

  • Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
  • Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
  • Low Noise High Stability Linear Voice Coil Motor For Medical Scanners
Lugar de origem porcelana, Suzhou
Marca SUPT MOTION
Certificação ISO9001,CE,3C
Número do modelo Série de VCAB
Quantidade de ordem mínima 1 unidade
Preço $108-$200
Detalhes da embalagem Embalagens personalizadas, etc.
Tempo de entrega 1-5 peças, 5 dias. > 20 peças, a negociar
Termos de pagamento T/T
Habilidade da fonte A ser negociado

Contacte-me para amostras grátis e vales.

WhatsAPP:0086 18588475571

bate-papo: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Garantia 3 meses-1 ano Modelo do produto VCAB0087-0563-00A
peso ((g) 177 Força máxima (N) 87
Duração total (mm) 56,3 Voltagem máxima (V) 63,4
Aplicativo Produto automático Velocidade Alto
Tipo de produto motor de bobina de voz linear Comutação Escovar
Força contínua 17,5N Campos de aplicação 3C Eletrônica, Semicondutores, Automação, Óptica, Equipamentos de Inspeção
Barulho Ruído baixo
Deixe um recado
Descrição de produto

Product Description:

The VCAB0087-0563-00A shaft-type linear voice coil motor from SUPT adopts a moving-coilactuation mechanism combined with a precision-guided shaft and linear bearings, offering excellentstability within a compact structure. lts high-flux permanent magnet assembly creates a strongmagnetic field, enabling the lightweight moving coil to produce highly responsive and linear forceoutput with minimal inertia. This design allows the actuator to maintain outstanding dynamicbehavior during rapid acceleration, deceleration, and frequent reciprocating motion.

The Linear Voice Coil Motor, with its frictionless drive, high-frequency response, nanometer-level displacement resolution, and highly linear motion output, has become an essential actuator in modern medical scanning equipment. It is widely used in blood analyzers, CT auxiliary positioning units, confocal scanners, endoscope autofocus modules, and ultrasound probe scanning mechanisms, enabling fast, silent, contact-free, and highly repeatable micro-positioning performance.

Features:

  • Frictionless Direct-Drive Architecture
  • Ultra-Precise Micro-Positioning (Nanometer Resolution)
  • Ultra-Low Noise Motion
  • Millisecond-Level Fast Response
  • Supports Closed-Loop Position / Force Control

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners 0

Technical Specifications :

Stroke:56.3mm

Continuous Force:147.6N

Peak Force:87N

Force Constant:8N/A

Resistance:35.2Ω

Mass:good

Dimensions:200*400*400cm

Working Current:1.8A

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10



Applications:

  • Confocal Optical / Laser Scanners
  • Endoscope Autofocus Units
  • Hematology Cell Scanners
  • Ultrasound Probe Scanning Mechanisms
  • Medical Lab Micro-Positioning Stages
  • CT / X-Ray Positioning Units

Low Noise High Stability Linear Voice Coil Motor For Medical Scanners 1
