High Precision Micro VCAR Series Voice Coil Motors For Medical Devices

  • High Precision Micro VCAR Series Voice Coil Motors For Medical Devices
  • High Precision Micro VCAR Series Voice Coil Motors For Medical Devices
  • High Precision Micro VCAR Series Voice Coil Motors For Medical Devices
  • High Precision Micro VCAR Series Voice Coil Motors For Medical Devices
Lugar de origem porcelana, Suzhou
Marca SUPT MOTION
Certificação ISO9001，CE
Número do modelo Série de VCAR
Quantidade de ordem mínima 1 unidade
Preço $120-$260
Detalhes da embalagem Embalagens personalizadas, etc.
Tempo de entrega Entrega geral de 5 a 7 dias, rápida de 3 a 5 dias, a volume a ser negociado
Termos de pagamento T/T
Habilidade da fonte a ser negociado

Contacte-me para amostras grátis e vales.

WhatsAPP:0086 18588475571

bate-papo: 0086 18588475571

Skype: sales10@aixton.com

Se você tem algum interesse, nós fornecemos a ajuda online de 24 horas.

x
Detalhes do produto
Proteger o recurso Totalmente fechado Aceleração Alto
Precisão do posicionamento Alto Modelo VCAR0030-0150-00A
Comprimento de derrame 15mm Força de pico 29,4N
Voltagem máxima 40.5V Peso da bobina (g) 27
Tipo de motor Motor de bobina de voz de atuadores de acionamento direto Comutação Escovar
velocidade Alto
Destacar

High Precision VCAR Voice Coil Motor

,

Medical Device Voice Coil Motor

,

Micro VCAR Series VCM
Deixe um recado
Descrição de produto

Product Description:

VCAR series voice coil motors are engineered for medical devices, providing high precision and rapid response. They are widely used in surgical robots, ultrasound imaging systems, precision injection equipment, and laboratory automation instruments. Medical devices require extreme accuracy and reliability, especially during micron-level movements or rapid scanning. VCAR motors ensure smooth, vibration-free operation with cogging-free design and closed-loop control.

The VCAR0030-0150-00A model offers a compact structure and lightweight design, ideal for integration into space-limited medical instruments. It enables high-speed micro-displacement, supports high-frequency scanning, and fast positioning. Closed-loop control adjusts drive current in real time, ensuring accuracy and safety for medical operations. Its micro design is perfect for endoscope fine-tuning, surgical tool precision motion, and micro-dosing applications.

VCAR motors provide low noise, low friction, and long-term reliability. High-frequency response ensures automated instruments maintain accuracy under continuous operation, while lightweight movers reduce inertia for smoother dynamic control.

Features:

  • High speed and fast response for medical rapid operations
  • Micron-level precision for accurate device positioning
  • Cogging-free, smooth, low-vibration motion
  • Compact micro design for space-limited devices
  • High-frequency response, closed-loop control ensures stable precision
  • Lightweight mover reduces inertia, improves dynamics
  • High reliability and low noise for long-term operation

Product Parameter:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8

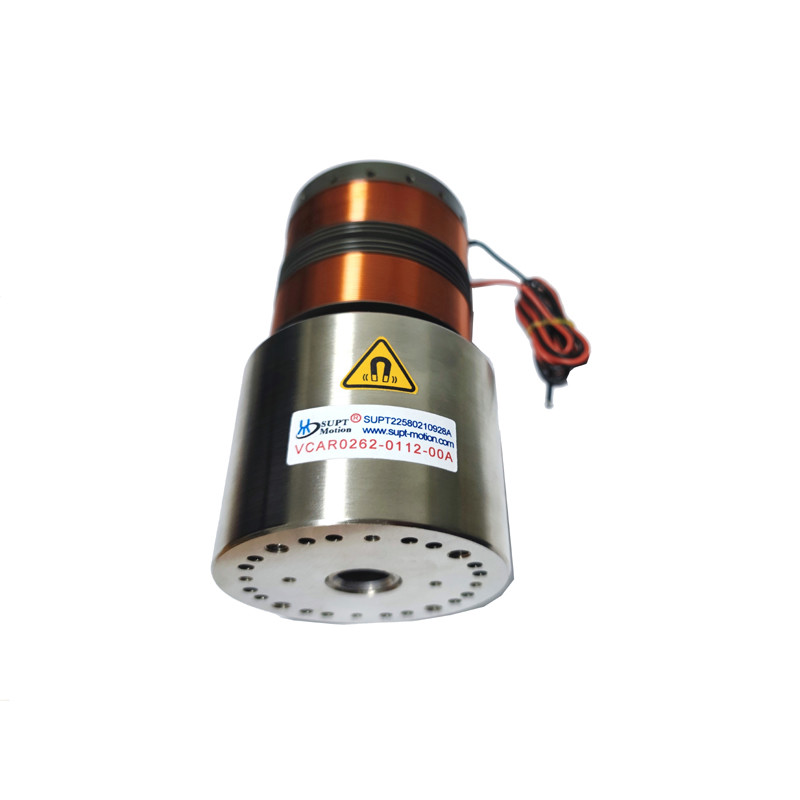

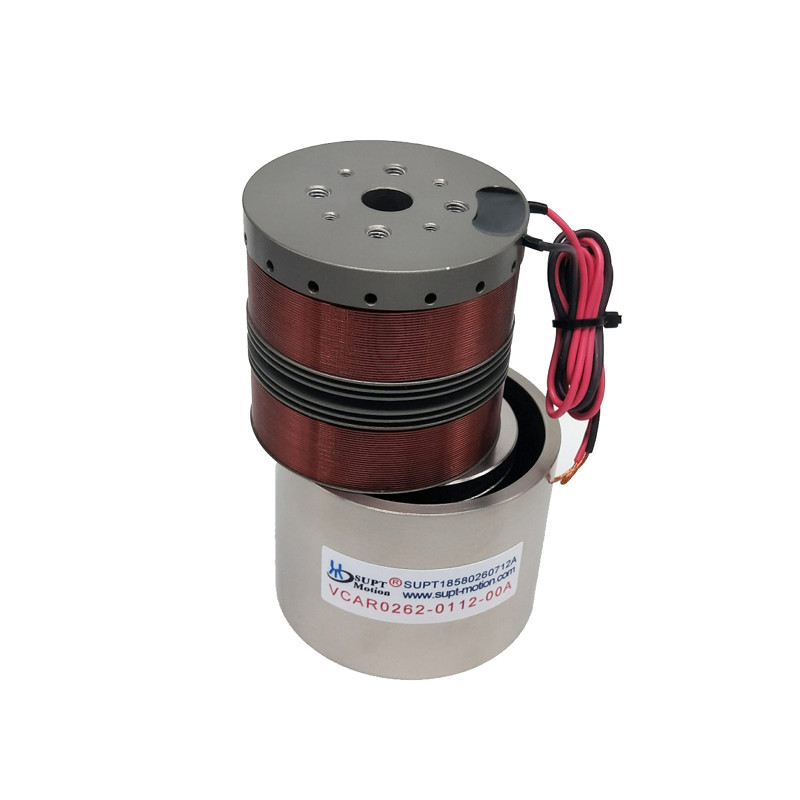

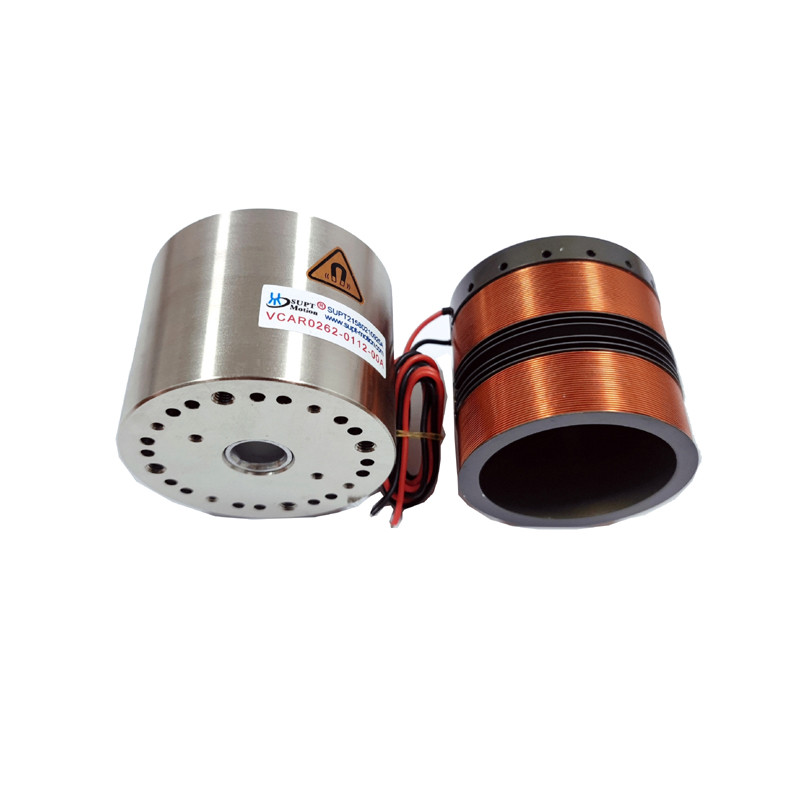

VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7

VCAR0030-0150-00A:

Peak force: 30N

Continuous 4.73 N

Stroke: 15mm

Voltage: 40.5V

Back-EMF constant: 7.4 V/m/s

Mover mass: 27g

Stator diameter: 30 mm

Coil insertion length: 31mm

High Precision Micro VCAR Series Voice Coil Motors For Medical Devices 0

Applications:

  • Surgical robot precision actuators
  • Endoscope micro-adjustment systems
  • Ultrasound imaging scanning platforms
  • Precision injection and micro-dosing systems
  • Laboratory automation micro-actuators
  • High-precision medical sensor control

FAQ

Q: Can VCAR0030-0150-00A be used in ultrasound imaging systems?
A: Yes, high-speed response and precise positioning ensure imaging stability.

Q: Does long-term high-frequency operation affect precision?
A: Low friction and cogging-free design guarantee long-term high-precision operation.

Q: Suitable for micro-displacement in surgical robots?
A: Provides micron-level smooth movement, fully compatible with surgical robot needs.
