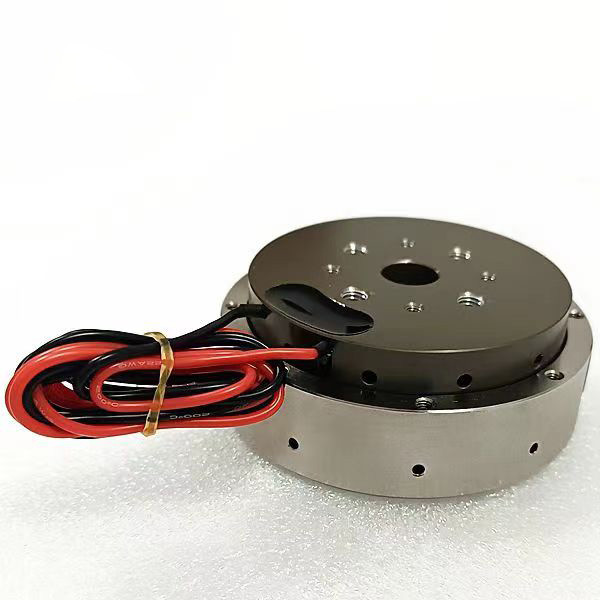

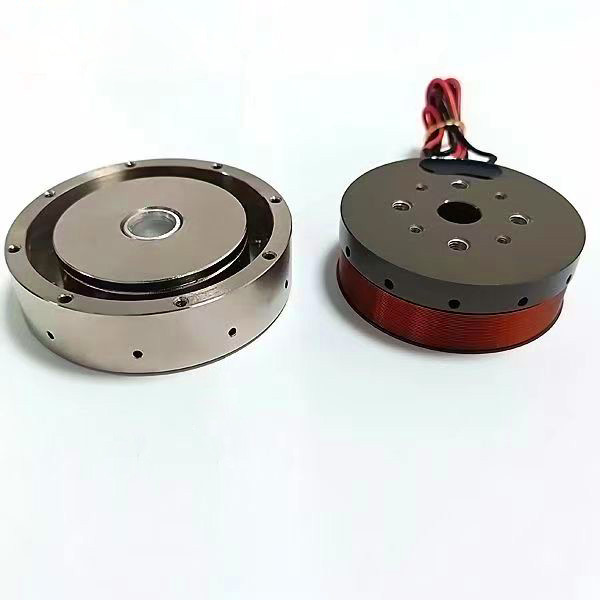

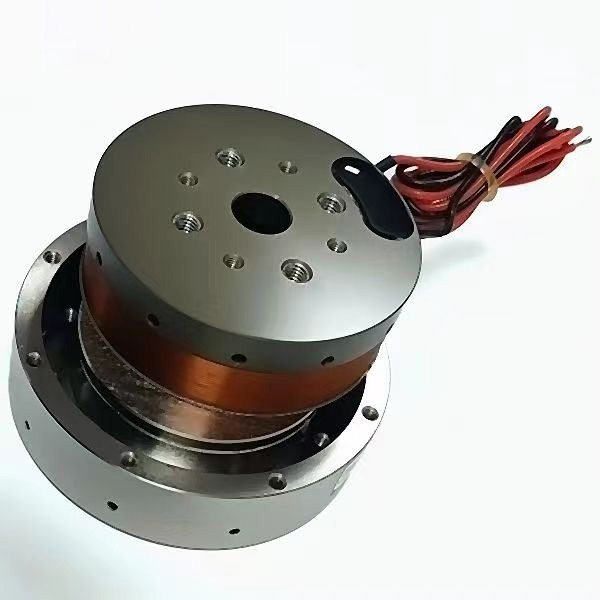

6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation

  • 6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
  • 6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
  • 6.2N High Dynamics Voice Coil Motor For Active Vibration Cancellation
Lugar de origem Jiangsu, China
Marca SUPT
Certificação ISO9001
Número do modelo VCAR0006-0050-00A
Quantidade de ordem mínima ≥5
Preço $160.00/pieces
Detalhes da embalagem Embalagens de cartão, etc.
Tempo de entrega Entrega geral de 5 a 7 dias, rápida de 3 a 5 dias, a volume a ser negociado
Termos de pagamento T/T
Habilidade da fonte Negociável
Detalhes do produto
Garantia 3 meses a 1 ano tipo Micro motor
Torque Pedidos Construção Ímã Permanente
Modelo de produto VCAR0006-0050-00A Recurso de proteção Totalmente fechado
Velocidade (rpm) Alta velocidade Força máxima ((N) 6.2
Distância máxima ((mm) 5 Motor de corrente alternada ((V) 15,7
Peso do rotor ((kg) 8.2 Diâmetro do estator (milímetro) 25
Força contínua ((N) 2.6
Destacar

6.2N high dynamics voice coil motor

,

voice coil motor for vibration cancellation

,

VCM motor with active vibration control
Deixe um recado
Descrição de produto





Product Description



The SUPT MOTION VCAR0006-0050-00A is a high-dynamic cylindrical voice coil motor that delivers a peak thrust of 6.2 N over a 5 mm stroke. Designed specifically for active vibration isolation systems, this voice coil motor generates a counterforce to eliminate low-frequency disturbances in precision instruments, optical stages, and semiconductor metrology equipment.

This actuator delivers a continuous thrust of 2.6 N at 25°C, with a back-EMF constant of 3.57 V/m/s and excellent thrust-current linearity. Weighing only 8.2 g, the moving coil enables rapid acceleration, thereby achieving real-time vibration suppression. With a maximum operating voltage of 15.7 V, it integrates seamlessly with standard servo amplifiers.

Active vibration cancellation (AVC) systems require actuators with fast response times and predictable force output. Traditional piezoelectric actuators have limited stroke, while pneumatic isolators lack bandwidth. The VCAR0006-0050-00A motor bridges this gap with a 5 mm stroke and millisecond-level response times, effectively canceling vibrations caused by floor movement, fans, or nearby mechanical equipment.

This voice-coil motor is also suitable for high-speed tool servo systems in precision machining, where small, rapid Z-axis movements improve surface finish. In optical focus tracking, the 5-millimeter stroke enables continuous autofocus adjustment without mechanical backlash. Its cylindrical profile (25-millimeter diameter) simplifies integration with existing vibration isolation systems.

With a more compact design, higher reliability, and lower maintenance costs, this voice coil motor is widely applicable in industrial inspection cameras, machine vision systems, visual positioning for product sorting, and industrial imaging measurement instruments, providing efficient, stable, and precise autofocus solutions for the industrial automation sector.





Specifications:

Peak Force: 6.2 N

Continuous Force @25℃: 2.6 N

Total Stroke: 5 mm

Max Voltage: 15.7 V

Back EMF Constant: 3.57 V/m/s

Coil Weight: 8.2 g

Stator Diameter: 25 mm

Length: 18.2 mm



Technical Parameters:



Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7



Applications:

1.Active vibration isolation tables



2.Optical table disturbance rejection



3.Fast tool servo (FTS)



4.Autofocus tracking



5.Metrology equipment stabilization
